Epilog Fusion Edge Laser System

Top-of-the-line technology in a compact desktop format.

Taking their highest-quality engraving technology and incorporating it into a medium format, high-value system allows educators to get the latest technology in a transportable format. The Epilog Fusion Edge features a touch-screen display panel, on-screen camera positioning, and job trace functionality for quick and easy artwork setup.

  • Fusion Edge 12: 24″ x 12″ x 7″ (610 x 305 x 178 mm) work area
  • Fusion Edge 24: 24″ x 24″ x 10″ (610 x 610 x 254 mm) work area
  • Fusion Edge 36: 36″ x 24″ x 10″ (914 x 610 x 254 mm) work area
    • 30, 40, 50, 60 or 80 watt CO2 Laser
    • 30 watt fiber laser available
    • Engrave items up to 10″ tall
    • IRIS™ camera system



Request a Quote

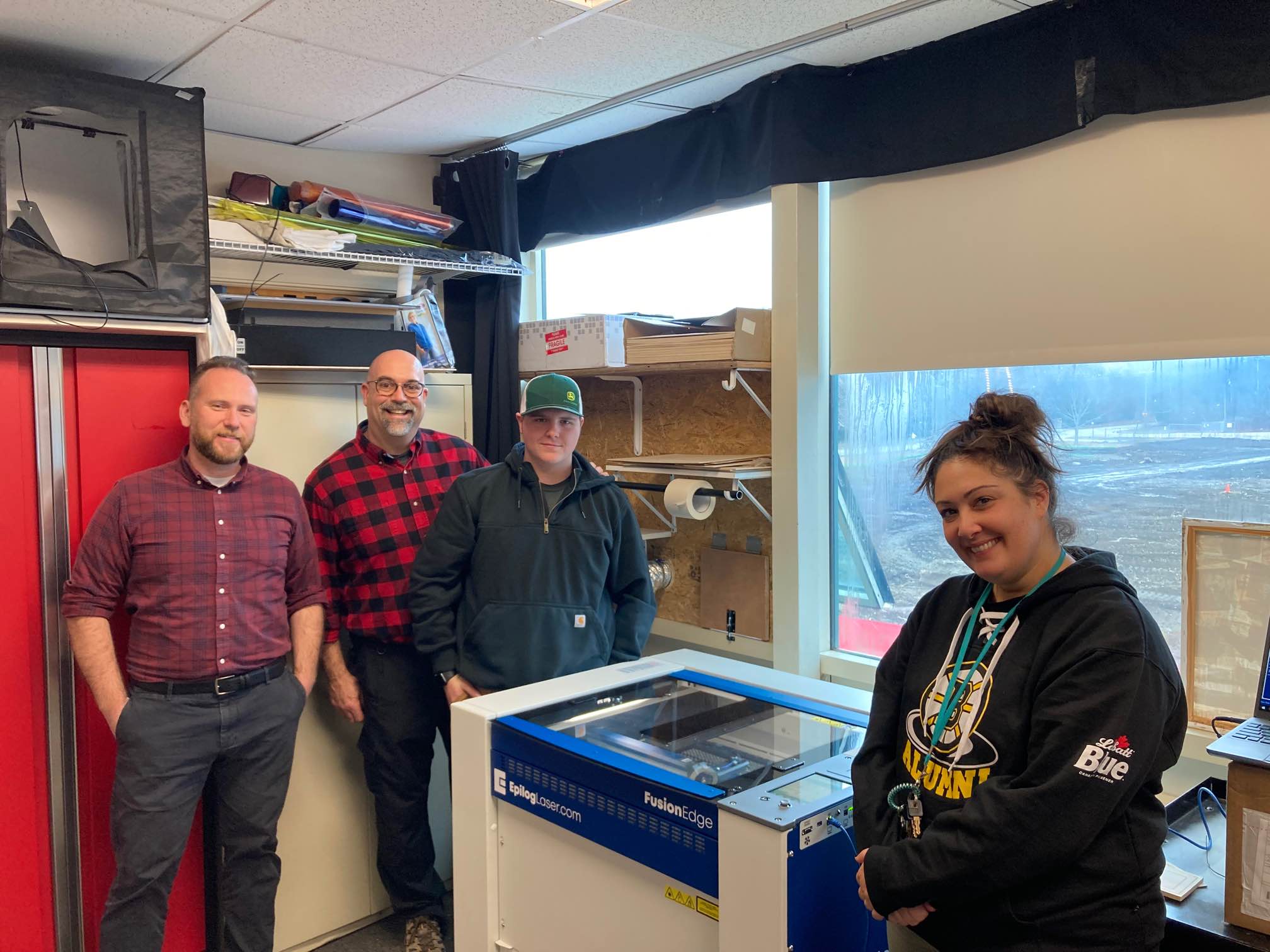

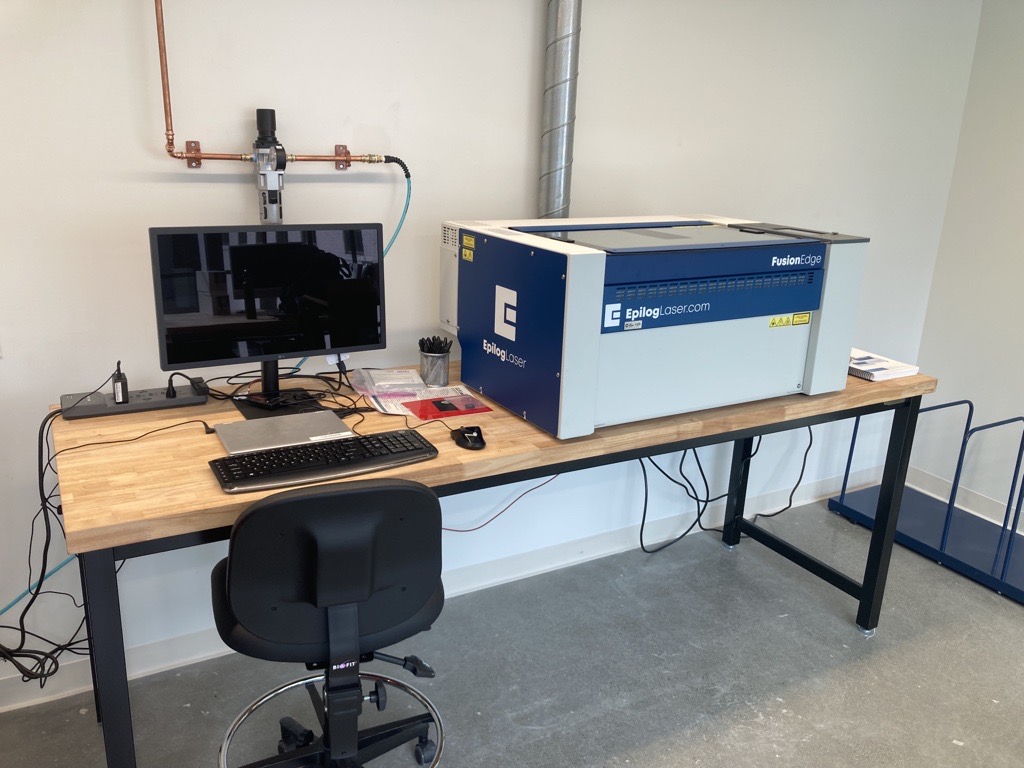

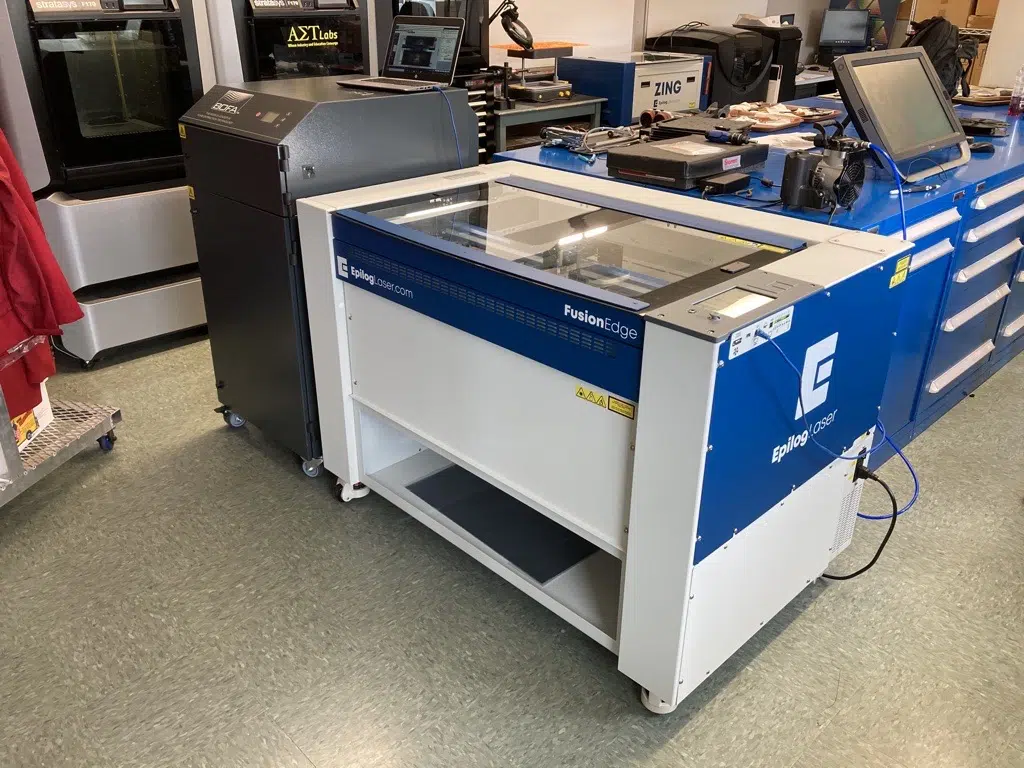

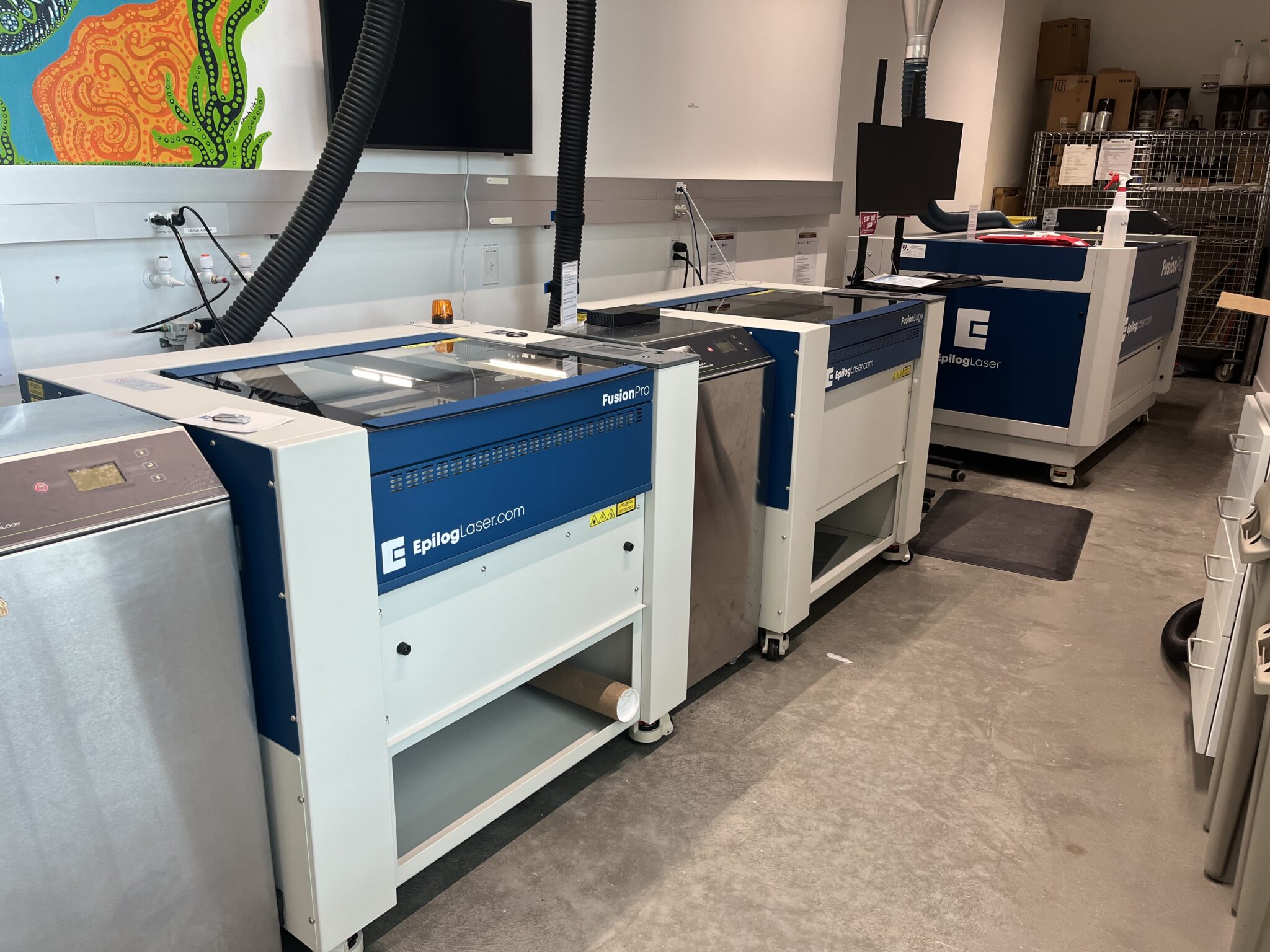

As Seen at Education Labs in New England

Learn More
Features


Below are just some of the features that highlight the capabilities of the new Epilog Fusion Edge Laser:



Highest-Speed Engraving

The Fusion Edge’s 120 IPS engraving speed and 5G acceleration provide the fastest engraving in the industry in a compact format.



IRIS™ Camera Positioning

An overhead camera provides an real-time picture of the working area for accurate artwork placement. Drag and drop your artwork on screen for the fastest work processing.



Touch Screen at the Laser

Select between jobs, auto focus the laser, and rerun jobs at the touch of a button from the easy-to-use touch screen interface right at the laser.



Network Your Laser Across Your Classroom

The Fusion Edge features built-in Ethernet, USB, and Wireless options for networking your laser.



Air Assist

The air assist directs air right at the cutting surface to remove heat and combustible gases from the point of laser contact, providing a cleaner cut.



Long-Life Steel Bearings

Designed to last the life of the system without the inevitable wobble and replacement of plastic bearings.



SAFEGUARD™ Features

Keep the mechanics of your laser machine cleaner than ever before with side enclosures, a fully covered x-axis assembly, and covered lens assembly.



Radiance™ Higher Resolution Optics

No additional, expensive lens package needed for the highest resolution engraving (Mini 24/Helix).



CO2 Waveguide Laser Tubes by Epilog

The all-metal tube design provides higher beam quality and longer life with low recharge costs.



1 GB Memory in the Machine

Improve job management and data integrity with 1GB of RAM. Save your most run jobs right at the laser.

Specifications

Quick Spec Comparisons

Fusion Edge 12 Fusion Edge 24 Fusion Edge 36
Work Area 24″ x 12″ x 7″
(610 x 305 x 178 mm)
24″ x 24″ x 10″
(610 x 610 x 254 mm)
36″ x 24″ x 10″
(914 x 610 x 254 mm)
Laser Options CO2 or Fiber CO2 CO2
CO2 30, 40, 50, 60 watts 30, 40, 50, 60, 80 watts 50, 60, or 80 watts
Fiber 30 watts
IRIS™ Cameras 1 overhead 2 overhead 2 overhead
Materials

CO2 Material Compatibility

Engrave Cut
Wood x x
Acrylic x x
Fabric x x
Glass x
Coated Metals x
Ceramic x
Delrin x x
Cloth x x
Leather x x
Marble x
Matte Board x x
Melamine x x
Mother of Pearl x x
Paper x x
Mylar x x
Pressboard x x
Rubber x x
Wood Veneer x x
Fiberglass x x
Painted Metals x
Tile x
Plastic x x
Cork x x
Corian x x
Anodized Aluminum x
Stainless Steel *
Brass *
Titanium *
Bare Metals *
* CO2 lasers will mark bare metals when coated with a metal marking solution. For more information, visit our laser metal marking page.
Software

Laser Dashboard and Job Manager

The Laser Dashboard™ controls your laser’s settings from a wide range of software packages – from design programs to spreadsheet applications to CAD drawing packages. As the interface to the laser, the Laser Dashboard makes the features you use most often accessible at the touch of a button.

The Job Manager is a powerful tool that will allow you to access any job you have sent to the laser, view the settings you used on any past job, re-run projects, access your material database, and much more.

Epilog laser systems work through a print driver, so you can design your files in many different graphic software packages including Illustrator, Photoshop, AutoCAD, and much more. However AET Labs recommends and supports CorelDraw, which is the most commonly used software

Ancillaries

Essentials:

  • PC
  • Building exhaust or fume extraction system
  • Graphics software (CorelDraw or equivalent)
  • Air assist pump
  • Consumables

Recommended:

  • Rotary attachment
  • Vector cutting grid
  • Photo laser plus software
Instructor Training

Basics:

  • Laser Dashboard and Job Manager (1-2 hrs)
  • Laser set-up and Operations (~1-2 hrs)
  • Using CorelDraw with your laser (4-6 hrs)

Advanced:

  • Advanced laser applications (4-6 hrs)
Curriculum Resources

AET Labs Custom Lesson Plans

  • Basic operation tutorials
  • Application examples
  • Project ideas
