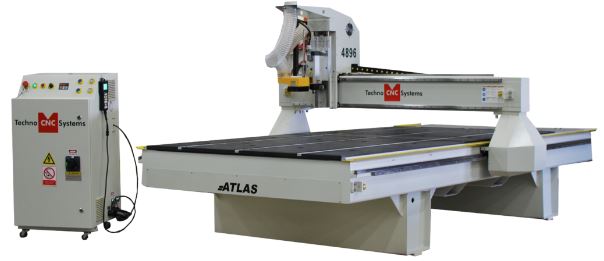

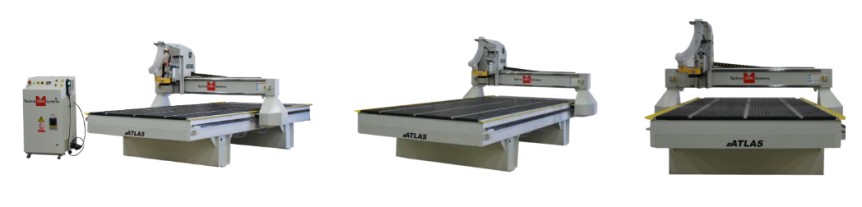

ATLAS Series CNC Router

Large Format Router by Techno CNC

The Atlas Series machine is all steel construction providing the rigid foundation required for ultra-smooth routing results. The Atlas machine includes a 4HP HSD collet spindle. This CNC router model includes a dust hood that has concentrated air flow at the cutter, which provides optimal dust collection performance. The multi-zone vacuum t-slot table is constructed from very hard Phenolic, which is very stable material, and holds tight tolerances for precision cutting. The Atlas Series is connected to a 10HP Rotary vane vacuum pump, which has very quiet operation (82db). The Atlas series is powered by brushless drive motors, and is controlled via easy to use and learn hand held controller.



Request a Quote Request a Demo


Learn More
Features

Features:

  • 4′ x 4′, 4′ x 8′ and 5′ x 10′ stock sizes (Special sizes available upon request.)
  • 4 HP HSD high-frequency collet spindle
  • Maintenance free brushless stepper drive motors

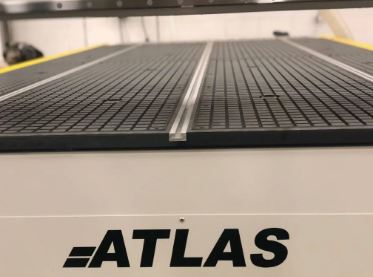

  • Multi-zone vacuum t-slot table

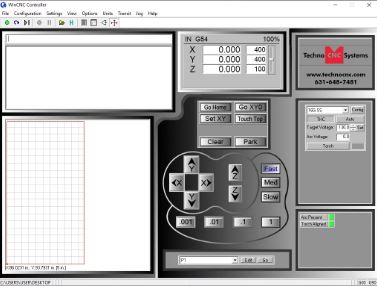

  • Easy to use hand-held controller (optional PC based system available)
  • Open architecture works with all industry standard CAD/CAM software

                                                          Atlas can be equipped with a safety light curtain on all sides

Software

Aspire CAD/CAM for Routering

What makes Aspire the premium package, is the added 3D design tools, which enable you to create your own 3D relief models and machine them with 3D machining strategies. Aspire’s unique 3D modeling tools coupled with the comprehensive set of 2D design and editing tools make it easy to create your own 2D and 3D parts from scratch as well as the ability to import and edit external 2D and 3D data.



Recommended: 40-seat class license

Click here for info on Aspire

Ancillaries

Essentials:

  • PC
  • Router Bit Set
  • Graphics Software (VCarve or equivalent)
  • Consumables

Recommended:

  • Vacuum hold-down pump
  • 3 HP dust collector

Optional:

  • Cam Clamp
  • Clamp bar
  • Vise
  • Toggle clamp set (4 pc)
  • Coolant system
  • Safety light curtain
  • 4th Axis rotary table with tailstock
Instructor Training

Basics:

  • Machine set-up and operation (2 hrs)
  • VCarve Basics (4-6 hrs)

Advanced:

  • Advanced applications (4-6 hrs)
Curriculum Resources

AET Labs Custom Lesson Plans

  • Basic operation tutorials
  • Applications examples
  • Project ideas

Providing End-to-End Solutions for Successful Labs

AET Labs is an advisor and value-added reseller inspired to bring real-world industry experience to education with end-to-end technology lab solutions. We are application specialists, service technicians and knowledgeable consultants who combine experience, curated product lines, and the ability to implement with professionalism and forward thinking. As a partner to New England education visionaries since 2005, we value educating future generations.
